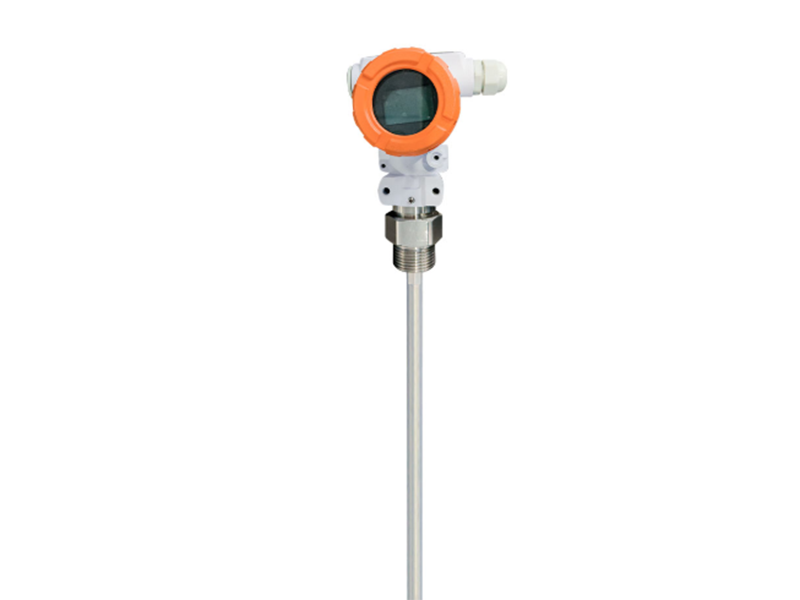

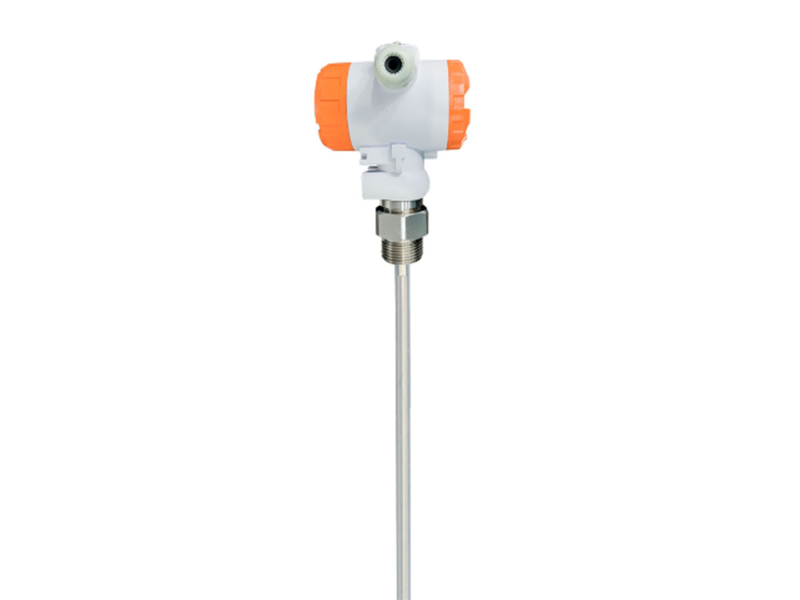

GRFL-1002 RF Admittance Level Transmitter

GRFL-1002 RF Admittance Level Transmitter
Application：Liquid, Solid
Measuring Range：10PF～5000PF
 Allow Work Pressure：0.1~2MPa
 Allowable Ambient Temperature：-35℃~65℃
Accuracy：＜0.5% Actual Measured Value
Protection Grade：IP67
Signal Output：(4-20)mA Alarm Output
 Housing：Die-Casting Aluminum
Cable Entry: M20*1.5
Explosion proof Grade: Ex d IIC T6 Gb/Ex ia IIC T6 Ga


        Rod type, suitable for metal containers, measures non-conductive media, due to installation and transportation restrictions, the max range is 3 meters, suitable for small tank level measurement.Power supply 24VDC .The model can set alarm parameters to achieve switching alarm output use and maintenance is very convenient.
