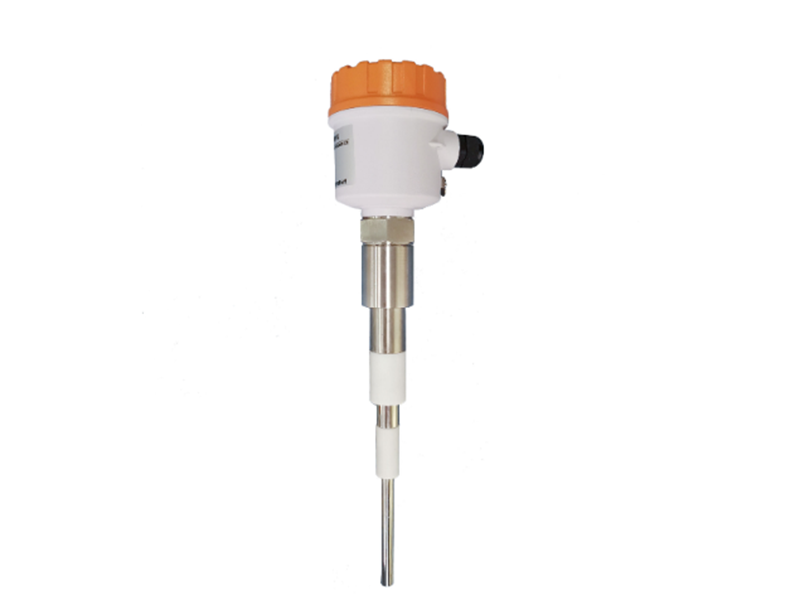

GRFL-1000S RF Admittance Level Switch

FRFL-1000S RF Admittance Level Switch


Used for measuring solid, powder, liquid conductive and non-conductive materials. 24VDC and 220VAC power supply optional, DPDT 5A relay output, direct control of small equipment, can adjust the sensitivity and output delay through the potentiometer .High temperature type can be customized.

Application: Solid Particles, Powder Liquid Conductive Non-Conductive Materials

Power Source: 220VAC or 24VDC

Relay Capacity: DPDT rated 5A

Time-Delay Relay: 0~30 Second adjustable

Rate Work: 3W

Medium Temperature: -40℃～200℃

Environment Temperature: -40℃～80℃

Cable Inlet: M20*1.5 or 1/2 NPT
